pixy2

Description

This sample showcases the communication between the development board and the Pixy2 camera. This is done by first printing some information regarding the camera’s firmware and hardware, turning on the upper two LEDs and, finally, using the bottom RGB LED to switch from one color to another using linear interpolation.

Purpose

Use this sample to check if you’ve successfully managed to hook up the Pixy2 camera to your development board. Furthermore, if you wish to use a different protocol to communicate with the camera, you may use this sample to check if the communication is sane.

Hardware

This sample requires the Pixy2 camera be connected to the development board. Information on how to set up the camera can be found here: The Pixy2 camera.

Where to find?

This sample is located under: samples/pixy2.

API reference

The API is split into three main parts:

  1. The transport API.

  2. The protocol API.

  3. The command API.

Configurations

This sample comes with the following configuration options:

  1. CONFIG_NXPCUP_PIXY2_I2C_TRANSPORT: set to y if you want to use I2C to communicate with the Pixy2 camera.

  2. CONFIG_NXPCUP_PIXY2_SPI_TRANSPORT: set to y if you want to use SPI to communicate with the Pixy2 camera.

Warning

CONFIG_NXPCUP_PIXY2_I2C_TRANSPORT and CONFIG_NXPCUP_PIXY2_SPI_TRANSPORT should be mutually exclusive. Therefore, if you set one of them to y, make sure the other is set to n.

See Configuring your application for a tutorial on how to set these configurations.

How to build

To build this sample, run:

west build -p -b frdm_imx93//a55 samples/pixy2 -D DTC_OVERLAY_FILE=frdm_imx93.overlay

The resulting binary may be found under: build/zephyr/zephyr.bin.

How to run

To run the sample, follow the steps detailed in Booting the board.

Expected behavior

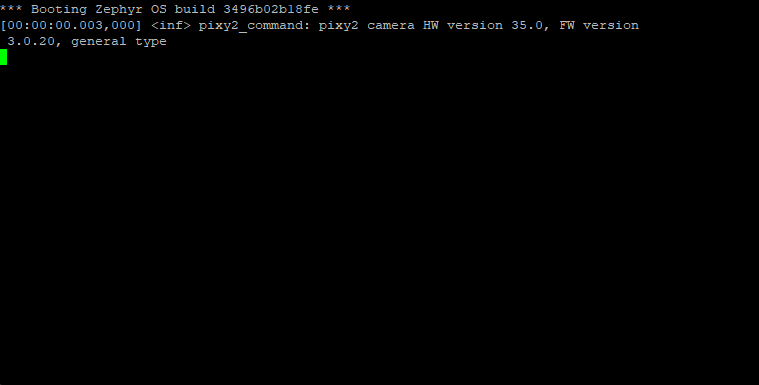

If everything went well, your serial console (ttyACM1/COM4) should display a message similar to the one showcased below:

../_images/pixy2_sample_output.png

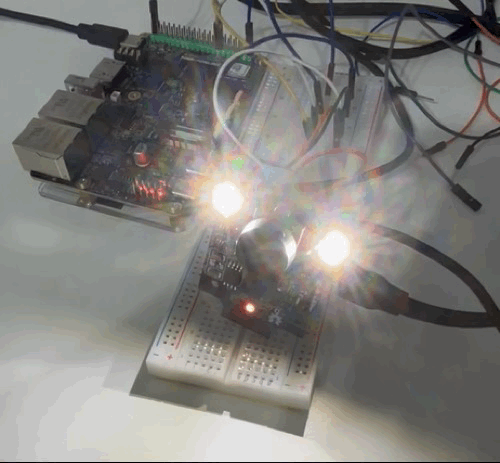

Furthermore, the camera’s upper two LEDs should be turned on, while the bottom RGB LED continuously loops between colors:

../_images/pixy2_video.gif
