The Zephyr device driver model

The device structure

In the context of operating systems, the term device driver is used to refer to a piece of software, which is used to manage a hardware device. Usually, based on the subsystem it resides in, the device driver will implement a set of functions (known as an API), which can then be used by the upper layers (e.g. the Zephyr kernel or your application) to perform certain tasks.

In the context of Zephyr, each hardware device is represented in the software by a struct device, which is used to hold information such as the device’s name, a pointer to the API functions, the device driver’s private data etc… You may find the definition of struct device here.

As users, what we’re mostly interested in here is that most (if not all) subsystem APIs will require (directly or indirectly) a pointer to a struct device to use. As an example, let’s take a look at the PWM subsystem API, which you may find here under the Functions section. As you can see, functions such as pwm_set_cycles(), pwm_set(), pwm_get_cycles_per_sec() etc.. take a pointer to a struct device as one of their parameters. Now, the question is: how do we obtain a pointer to this structure?

Creating a struct device

The Zephyr device drivers are the entities in charge of creating a struct device for all of the hardware devices they are managing. For this to happen, however, the devicetree nodes will have to meet the following criteria:

  1. Have their status set to okay.

  2. Match one of the drivers’ programming model.

Before going into details, it’s important to clarify one thing: a device driver can manage more than one instance of the same hardware device. For instance, assuming that you have a SoC with two PWM controllers, the same device driver will be used to manage both of the controllers. What differs, however, is the struct device that’s used since each of the controllers will have a different struct device bound to them.

Now, let’s consider the following PWM controller devicetree node as an example:

/* taken and adapted from nxp_mimx93_a55.dtsi */

tpm3: tpm@424e0000 {
    compatible = "nxp,kinetis-tpm";
    reg = <0x424e0000 DT_SIZE_K(64)>;
    interrupts = <GIC_SPI 75 IRQ_TYPE_LEVEL IRQ_DEFAULT_PRIORITY>;
    interrupt-names = "irq_0";
    interrupt-parent = <&gic>;
    clocks = <&ccm IMX_CCM_TPM3_CLK 0 0>;
    prescaler = <1>;
    #pwm-cells = <3>;
    status = "okay";
};

The first thing we need to check is if the node is enabled. Therefore, we need to check if the status property is set to okay or is missing (in which case its value is assumed to be okay). For our example node, we can see that this is true.

The next step is to look at the programming model (i.e. the compatible property) and check to see if there’s a matching device driver. In our case, the programming model is nxp,kinetis-tpm. However, we can’t use this value directly in our query since the Zephyr device drivers expect a different format. To convert the compatible value to the expected format, all we have to do is replace the comma (,) and hyphens (-) with underscores (_). This would yield the following value: nxp_kinetis_tpm.

Below, you may find some example of how to convert the compatible values found in the DTS to the format expected by the Zephyr device drivers:

  1. nxp,tpm-timer -> nxp_tpm_timer

  2. nxp,imx-rgpio -> nxp_imx_rgpio

  3. nxp,lpuart -> nxp_lpuart

  4. nxp,lpi2c -> nxp_lpi2c

and so on and so forth.

We can then use the converted compatible value to look for a device driver. To do so, you can run the following command inside ~/work/repos/nxpcup_root/zephyr (Linux) or ~\Desktop\nxpcup_root\zephyr (Windows):

git grep <compatible_value> -- drivers/

, where compatible_value is the converted compatible value. For example, issuing:

git grep nxp_tpm_timer -- drivers/

would yield:

drivers/counter/counter_mcux_tpm.c:#define DT_DRV_COMPAT nxp_tpm_timer

Note

Some device drivers may not have the DT_DRV_COMPAT macro defined in a source file under drivers/. In such cases, you can drop the -- drivers/ bit from the above command and let git grep look through the entire Zephyr tree.

What we’re trying to find is a source file located under drivers that defines the DT_DRV_COMPAT macro to the same value as our converted compatible. In our example, that file would be counter_mcux_tpm.c. Some more examples are shown below:

  1. nxp_kinetis_tpm

git grep nxp_kinetis_tpm -- drivers/

drivers/pwm/pwm_mcux_tpm.c:#define DT_DRV_COMPAT nxp_kinetis_tpm

  1. nxp_lpi2c

git grep nxp_lpi2c -- drivers/

drivers/i2c/i2c_mcux_lpi2c.c:#define DT_DRV_COMPAT nxp_lpi2c
drivers/i2c/i2c_mcux_lpi2c_rtio.c:#define DT_DRV_COMPAT nxp_lpi2c

Interestingly, we have two source files defining the DT_DRV_COMPAT macro to the value we’re interested in. In this cases, we’d have to check which of these two files actually gets compiled for our application. To do so, check the content of drivers/i2c/CMakeLists.txt and look for the corresponding configs:

/* taken and adapted from drivers/i2c/CMakeLists.txt */

if(CONFIG_I2C_RTIO)
    zephyr_library_sources_ifdef(CONFIG_I2C_MCUX_LPI2C      i2c_mcux_lpi2c_rtio.c)
else()
    zephyr_library_sources_ifdef(CONFIG_I2C_MCUX_LPI2C      i2c_mcux_lpi2c.c)
endif()

This means that if CONFIG_I2C_RTIO and CONFIG_I2C_MCUX_LPI2C are set to y, the selected driver will be i2c_mcux_lpi2c_rtio.c. Otherwise, if CONFIG_I2C_RTIO is set to n and CONFIG_I2C_MCUX_LPI2C is set to y, the selected driver will be i2c_mcux_lpi2c.c.

To check for the values of the aforementioned configs, you can use the menuconfig interface.

  1. nxp_lpuart

git grep nxp_lpuart -- drivers/

drivers/serial/uart_mcux_lpuart.c:#define DT_DRV_COMPAT nxp_lpuart

Once we have identified the driver’s source file, we need to make sure that it actually gets compiled in. One way to do so is to open the driver’s source file and temporarily add a line that would break the compilation of your application (for example: asdadasd). If your compiling your application fails then you’re most likely set and can revert the source file back to its original form. Otherwise, you’ll have to make sure you have all of the appropriate configs enabled.

Let’s assume we’re compiling the hello_world sample (i.e. samples/hello_world) and that we want to use the pwm_mcux_tpm.c driver. The first thing we notice after adding the asdasd line to our driver is that the compilation doesn’t fail. This might indicate that we have some config-related issues, which is why we need to find the config associated with this driver and make sure it’s set to y. Looking at drivers/pwm/CMakeLists.txt, we can see the following line:

zephyr_library_sources_ifdef(CONFIG_PWM_MCUX_TPM        pwm_mcux_tpm.c)

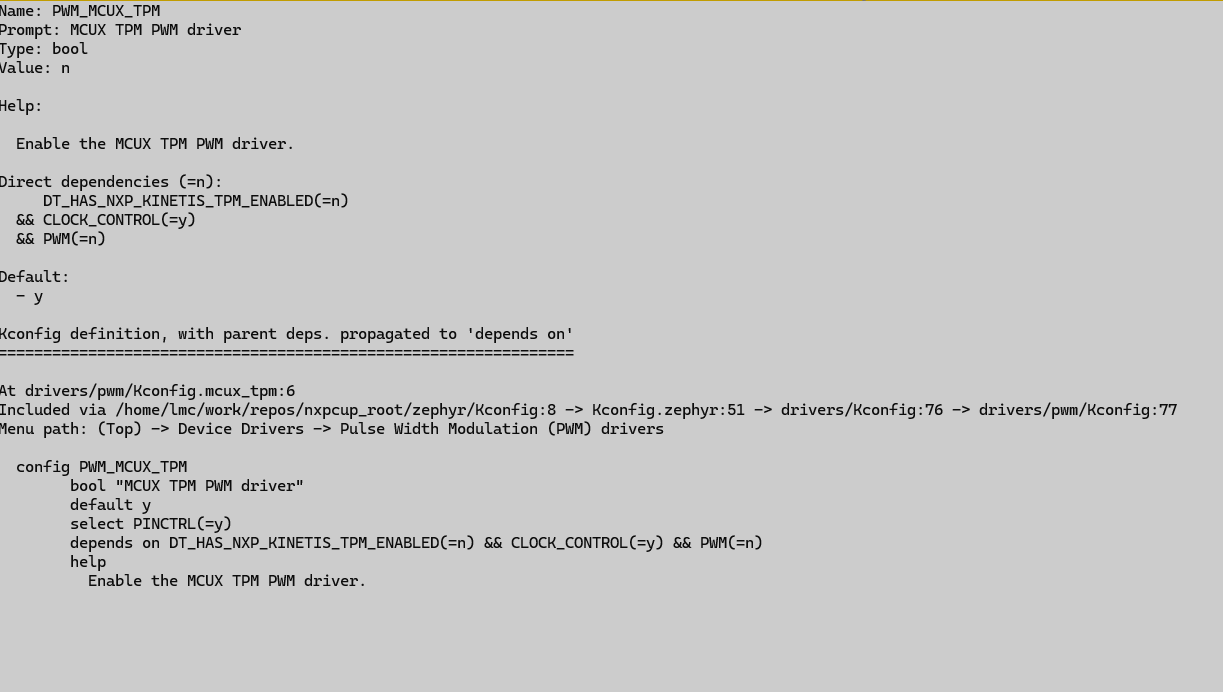

Therefore, the config we’re interested is CONFIG_PWM_MCUX_TPM. Looking up this config in the menuconfig interface yields the following result:

../_images/menuconfig_tpm.png

We can see that the value of this config is indeed set to n. However, we won’t be able to directly set its value to y since it has some dependencies (see the Direct dependencies section from the figure above) that are also set to n: CONFIG_PWM and CONFIG_DT_HAS_NXP_KINETIS_TPM_ENABLED. Therefore, we’ll first have to sort those out. For CONFIG_PWM, you can set directly set its value to y via menuconfig or the prj.conf file. As for CONFIG_DT_HAS_NXP_KINETIS_TPM_ENABLED, this config is somewhat special. What it means is that there’s no devicetree node with the nxp,kinetis-tpm compatible that has its status set to okay.

If we look at the board DTS or SoC DTSI we can see that there’s no node with its compatible set to nxp,kinetis-tpm. Therefore, what we have to do in our application devicetree overlay is change the programming model of any of the TPM nodes like we do in samples/hbridge/frdm_imx93.overlay.

Note

Changing the node’s programming model might not be required all of the time. This mostly depends on what you’re trying to achieve (i.e. which drivers you want to use).

After making sure that both CONFIG_PWM and CONFIG_DT_HAS_NXP_KINETIS_TPM_ENABLED are set to y, we can see that CONFIG_PWM_MCUX_TPM is also set to y and now our driver finally gets compiled!

Getting a pointer to a struct device

To get a pointer to a struct device you can use the DEVICE_DT_GET() in combination with the DT_NODELABEL() macro as follows:

const struct device *my_device = DEVICE_DT_GET(DT_NODELABEL(my_label));

, where my_label is the targeted node’s label. For instance, assuming we’re interested in the tpm3 node, we’d use:

const struct device *pwm_dev = DEVICE_DT_GET(DT_NODELABEL(tpm3));

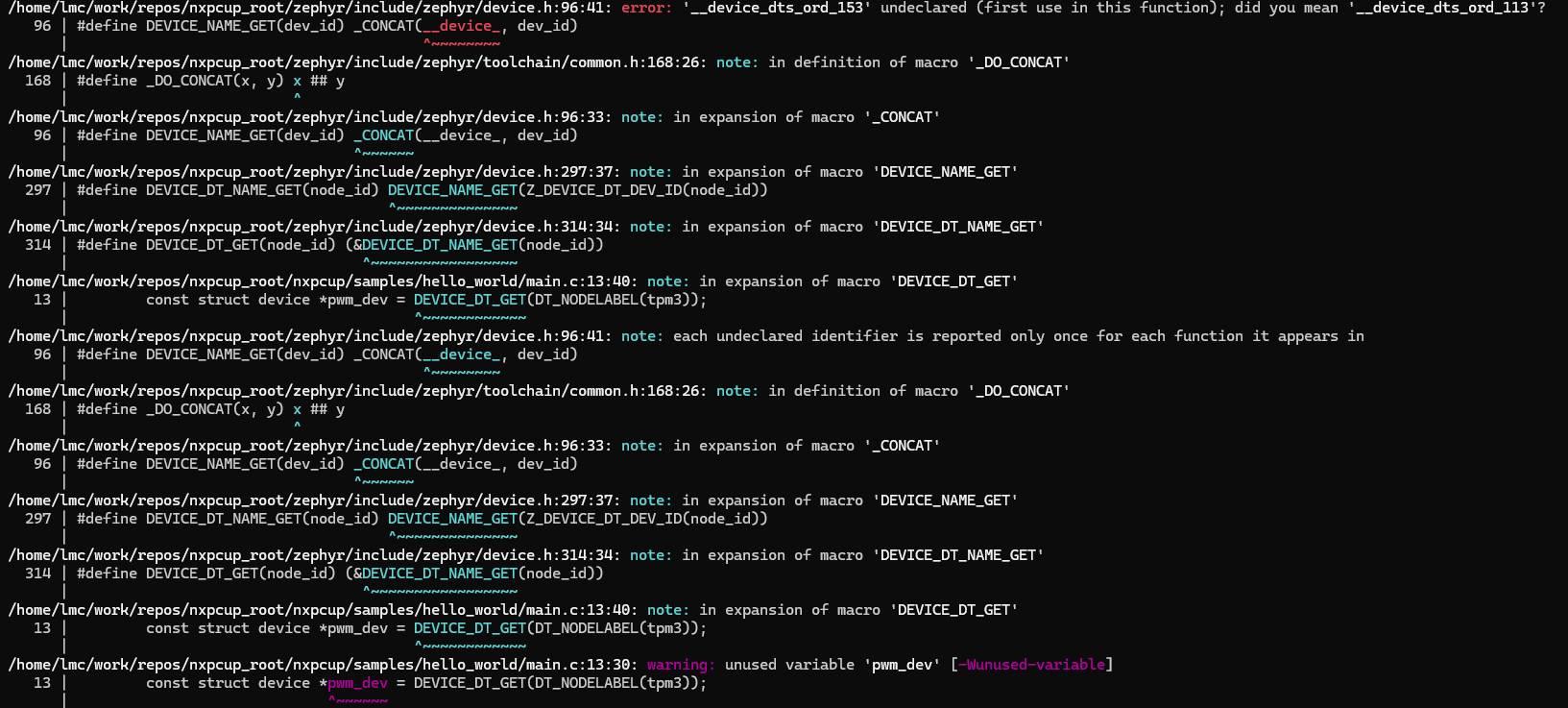

If you use this method and you get the following compilation error:

../_images/tpm3_compilation_error.png

this probably means that the device driver is not being compiled.

Further reading

For more information, we encourage the reader to check out the following resources:

  1. https://docs.zephyrproject.org/latest/kernel/drivers/index.html

  2. https://docs.zephyrproject.org/latest/build/dts/howtos.html
